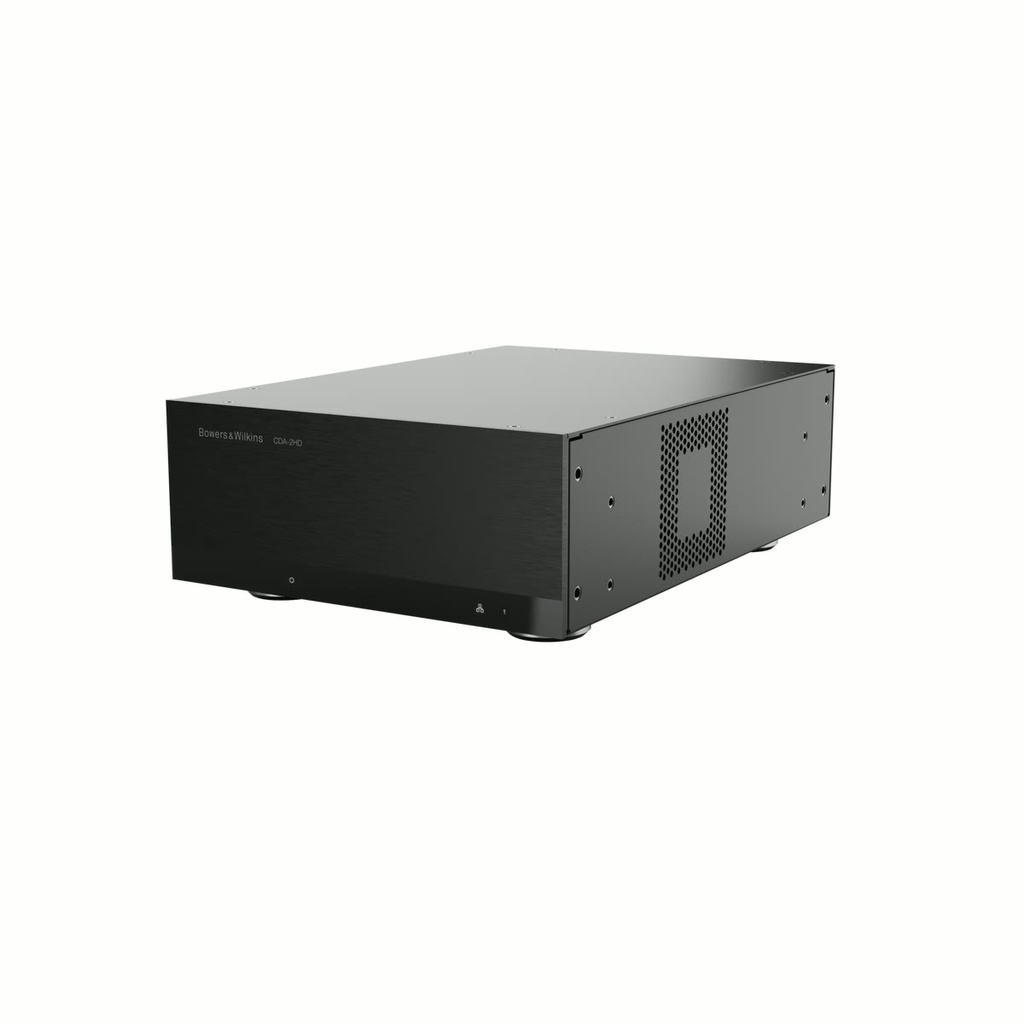

The CDA-2HD is a 2U high power distribution amplifier from Bowers & Wilkins, designed to drive current and future Bowers & Wilkins Custom Installation loudspeakers. Embedded DSP allows optimisation of a wide range of products and dynamic EQ for Bowers & Wilkins subwoofers, with two channels delivering 500 Watts each from a half-rack width chassis. Suited to installers and homeowners building multi-zone or whole-home audio systems that call for compact, high-power amplification with integrated signal processing.
Key specifications
- 2U Size High Power Distribution Amplifier
- Power - 250W into 8 & 500W into 4
- Signal Sense Threshold - 2.5mV
- THD+N(1kHz, 500W, 4) - Less than 1%
- Input: 1 x RCA (pair) Phono socket Analogue line in, &1 x RCA (pair) Phono socket Digital & 1 Ethernet
- HxWxD - 3.9" x 8.6" x 12.4"
- 3.4kg
Edge Solutions designs, installs and calibrates the CDA-2HD as part of a room.
Best suited to multi-room custom installation projects requiring compact, high-power amplification for Bowers & Wilkins Custom Installation loudspeakers and subwoofers.
Specifications
| Brand | Bowers & Wilkins |
