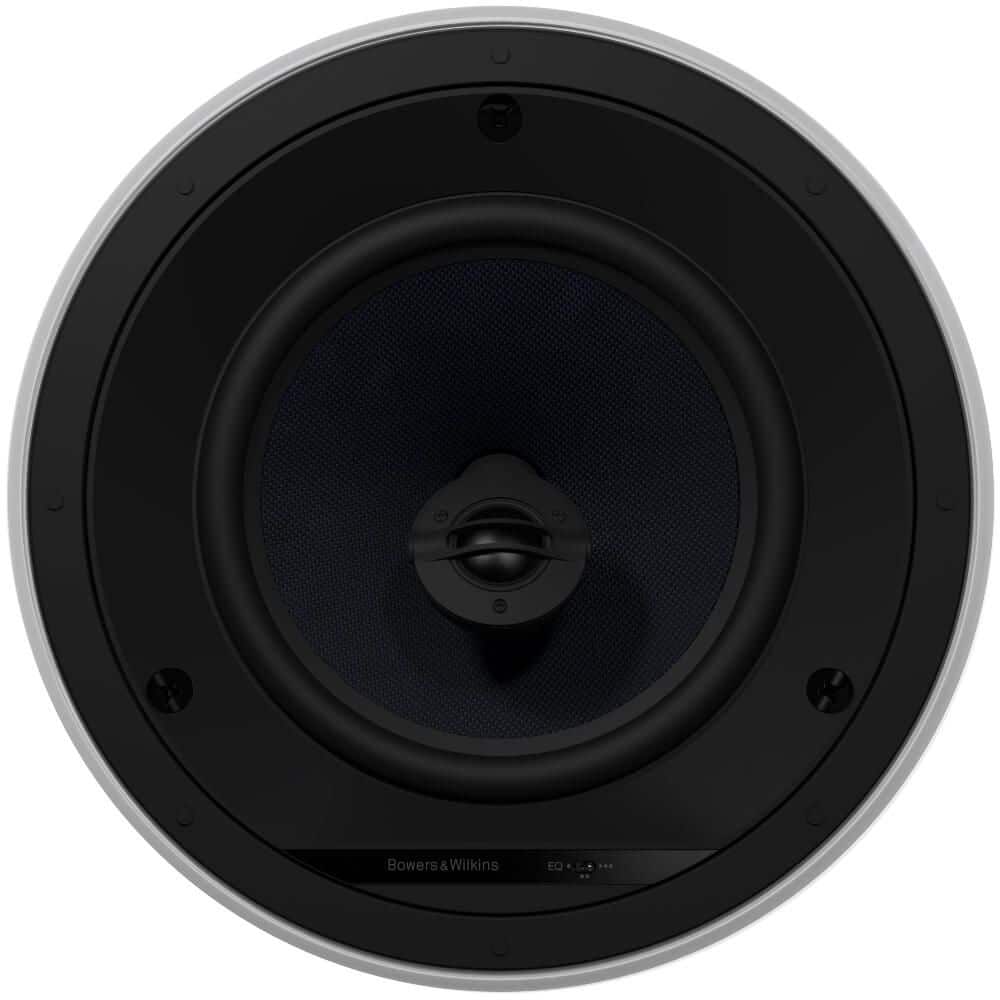

The Bowers & Wilkins CCM683 is a two-way in-ceiling speaker from the Performance series, built for rooms where a discreet loudspeaker still needs to deliver full-range sound. An 8in blue Aramid Fibre bass/midrange cone works with a Nautilus swirl-loaded aluminium dome tweeter, housed in a pivoting die-cast chassis that lets the treble be angled toward the listening position. Edge Solutions designs, installs and calibrates the CCM683 as part of a complete room, integrating it with the wider audio and cinema system.
Key specifications
- 1x1" Nautilus swirl loaded aluminium dome tweeter
- 1x8" blue Aramid Fibre cone bass/midrange
- Frequency response: 35Hz - 50kHz (-6dB)
- Sensitivity: 88dB
- Impedance: 8 ohm
- Power handling: 25W to 130W
- Cutout diameter: 9.8"
- Depth: 5.2"
Best suited to media rooms, snugs and multi-zone layouts where a ceiling-mounted, high-performance speaker is preferred over freestanding or in-wall alternatives.
Specifications
| Brand | Bowers & Wilkins |
