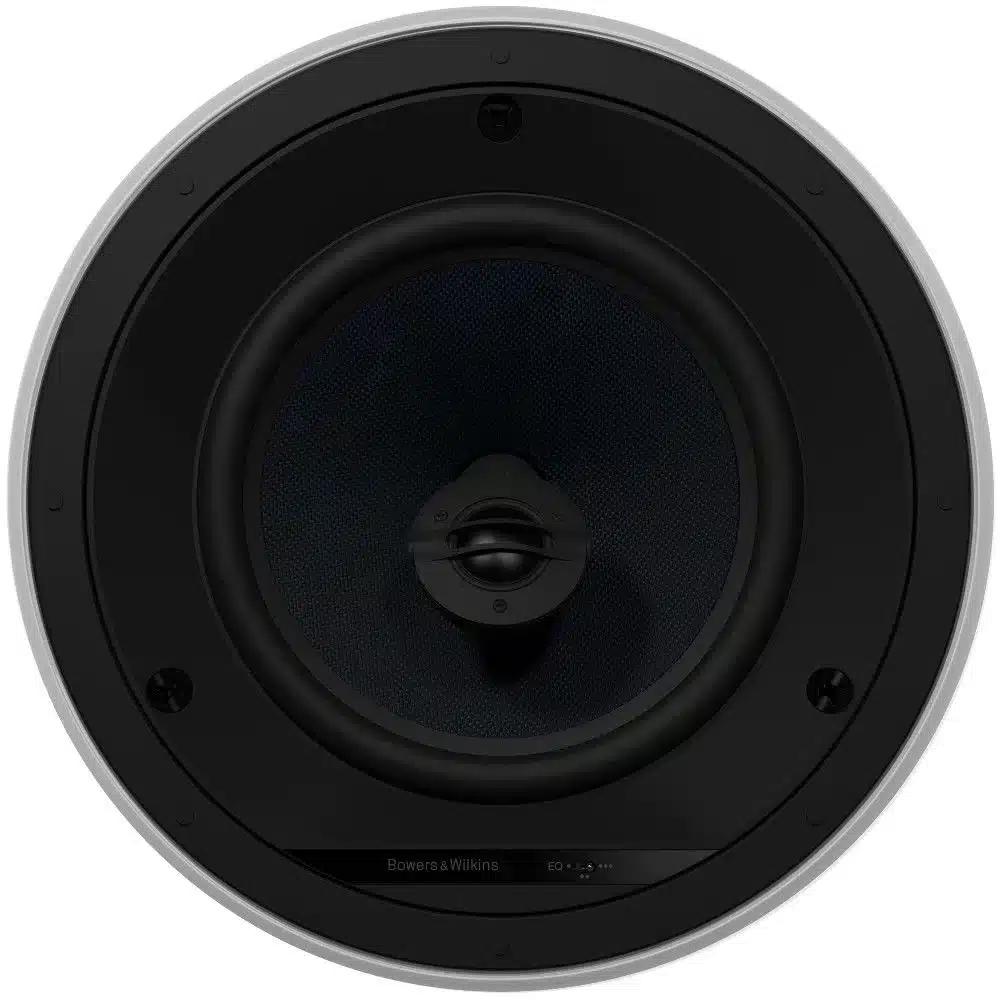

The Bowers & Wilkins CCM682 is a two-way in-ceiling speaker from the Performance series, built around an 8in blue Aramid Fibre cone bass/midrange driver paired with a 1in Nautilus swirl-loaded aluminium dome tweeter set within a circular die-cast chassis. Designed for discreet installation into a ceiling void, it suits dedicated home cinema rooms and multi-room audio schemes where a high-output, wide-bandwidth speaker is required without visible cabinetry. Edge Solutions designs, installs and calibrates the CCM682 as part of a complete room, integrating it with the wider audio and acoustic treatment.
Key specifications
- 1x1" Nautilus™ swirl loaded aluminium tweeter
- 1x8" blue Aramid Fibre cone bass/midrange driver
- Frequency response: 35Hz - 50kHz (-6dB)
- Sensitivity: 89dB
- Impedance: 8
- Power handling: 25W to 150W
- Cutout diameter: 9.8"
- Frame diameter: 11.4"
Best suited to home cinema and multi-room installations where a wide dynamic range and neat ceiling integration are required.
Specifications
| Brand | Bowers & Wilkins |
