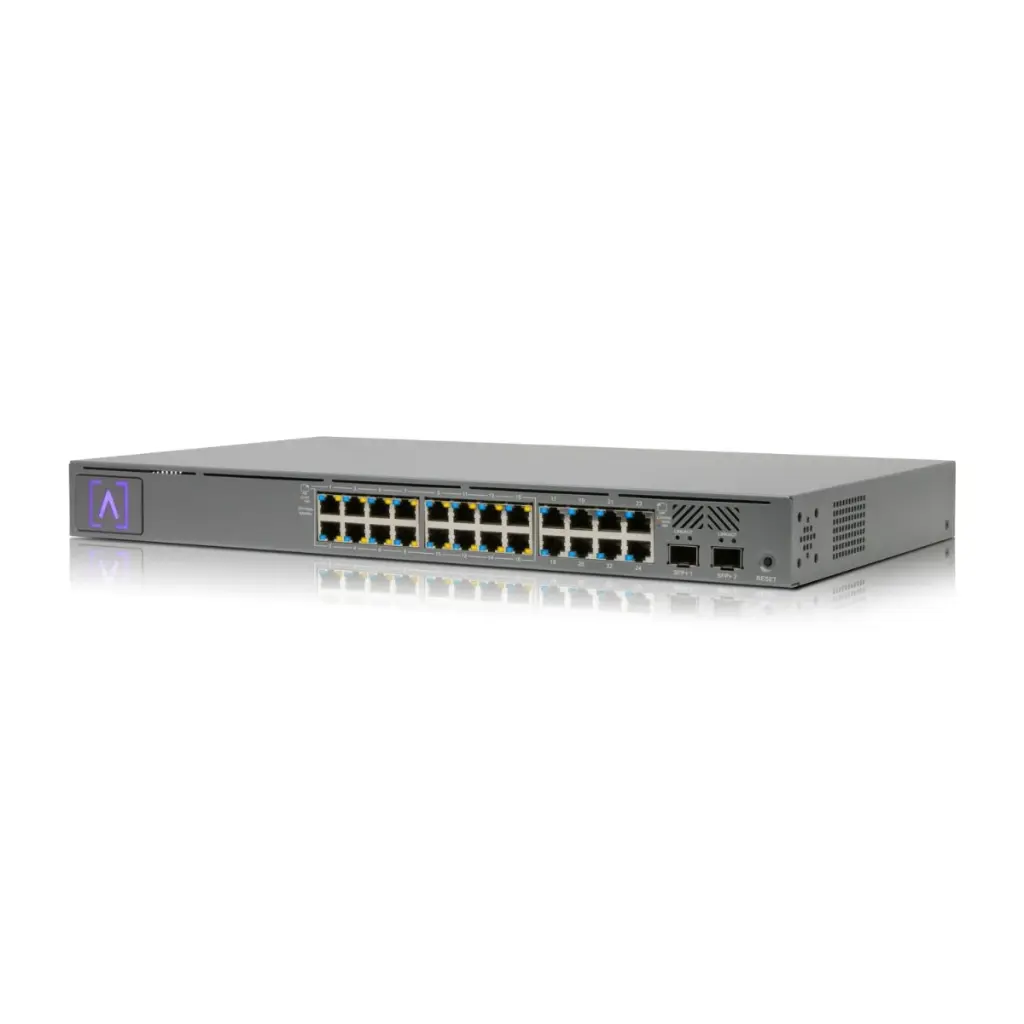

Alta Labs 24 Port, Layer 2, 240W PoE, Managed Enterprise Network Switch

Alta Labs 24 Port, Layer 2, 240W PoE, Managed Enterprise Network Switch

Features
  • Power Over Ethernet
  • SFP/SFP+ High performance connectivity
  • Bluetooth setup
  • Mobile app
  • Scalable cloud-based management
  • VLAN stacking
  • Egress and Ingress Rate limiting
  • IGMP snooping
  • 802.1X authentication
  • Network loop detection
  • Customizable dashboard
  • Status snapshots
  • Device cards
  • Site manager
  • Mounting Flexibility
Specs
  • Interface Ports: (24) 10/100/1000 Mbps
  • SFP/SFP+: (2) SFP+
  • Switching Capacity: 88 Gbps
  • Non-blocking throughput: 44 Gbps
  • Forwarding Rate: 65.5 Gbps
  • PoE Budget/Max: 240 watts
  • PoE Supply: 30 watts per port
  • Per Port PoE: (16) 802.3at PoE+
  • Non-PoE Ports: (10)
  • LEDS PoE: Orange
  • LEDS Network: Orange-10/100 Mbps, Blue-1000 Mbps
  • LEDS SFP/SFP+: Blue-Link/Activity (1, 2.5, 5 Gbps) / White-Link/Activity (10 Gbps)
  • Packet Buffer: 12 Mbit
  • Mac Table Size: 16K
  • Energy Efficient Ethernet: Yes
  • Management: Factory Reset Button
  • Bluetooth: Yes, Setup
  • Max Power Consumption without PoE: 53 Watts
  • Max Power Consumption Full PoE: 295 Watts
  • Output: PoE+, 54VDC, 0.6A Max
  • Power Supply: Universal AC, 100-240VAC 50-60Hz Internal
  • RJ45 Port Surge Protection: 12kV for ESD-contact, 25kV for ESD-Air
Dimensions
  • Size: 1.7” x 10” x 17.4”
  • Weight: 7.9 lbs.
What’s in the Box
  • (1) Alta Labs S24-POE
switch
