Controls

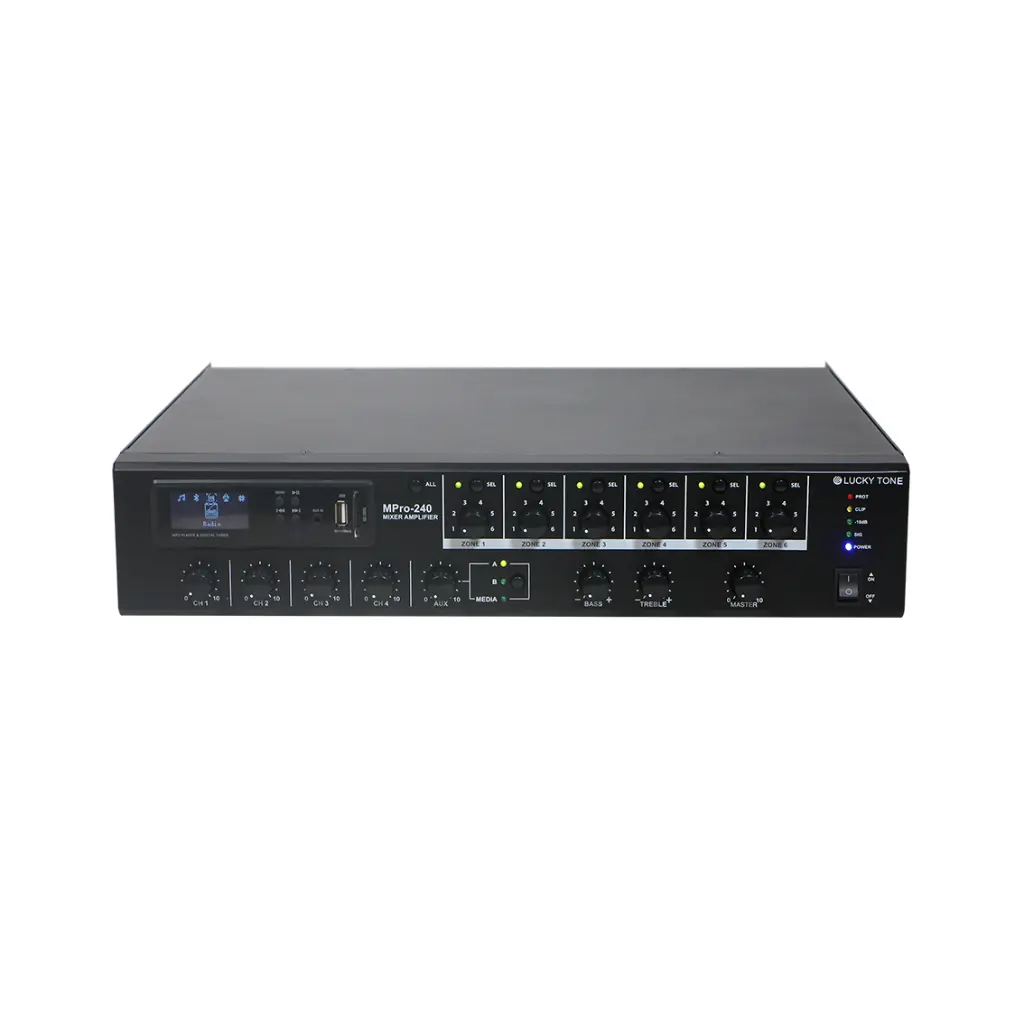

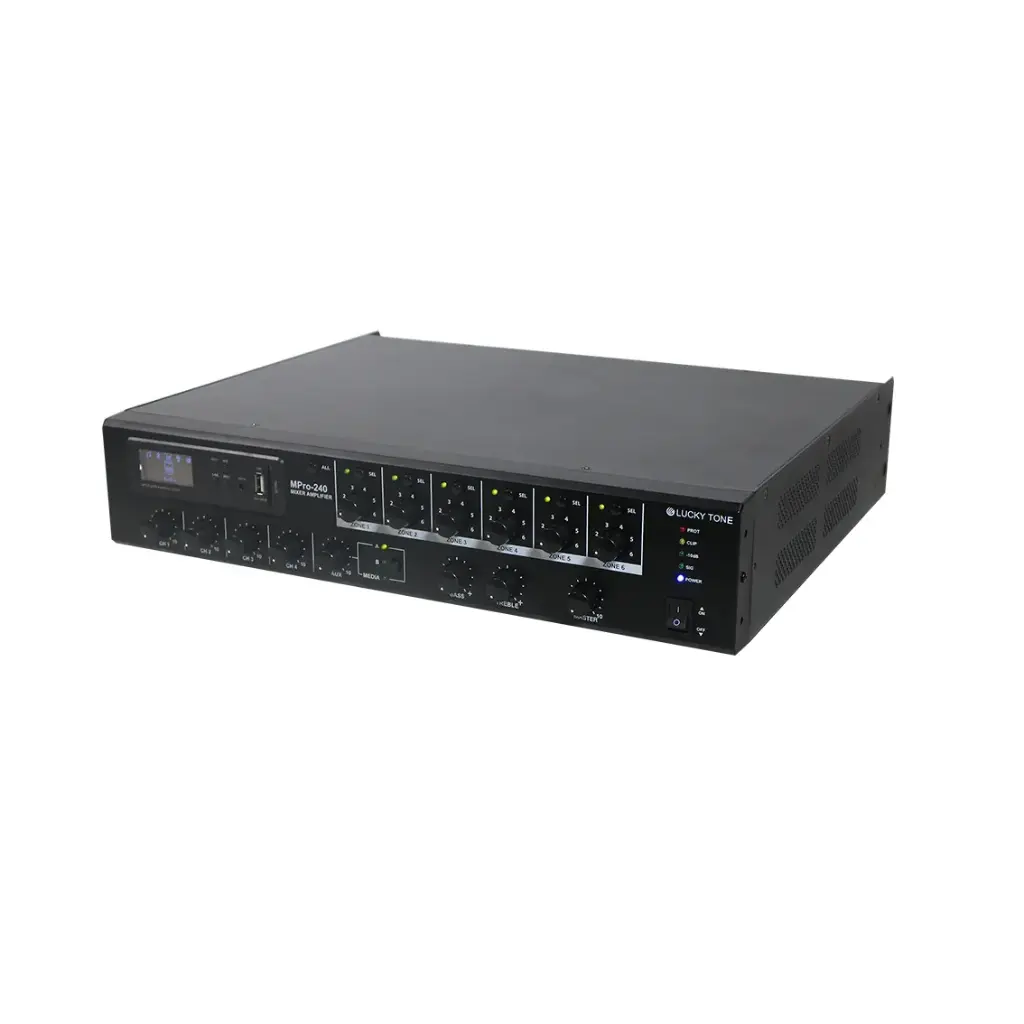

- Front : 4 Input Channel Volume Control and 1 selectable source input Volume control,
- Master Volume Control, 6 Zone Speaker Selector with 6 step attenuator.

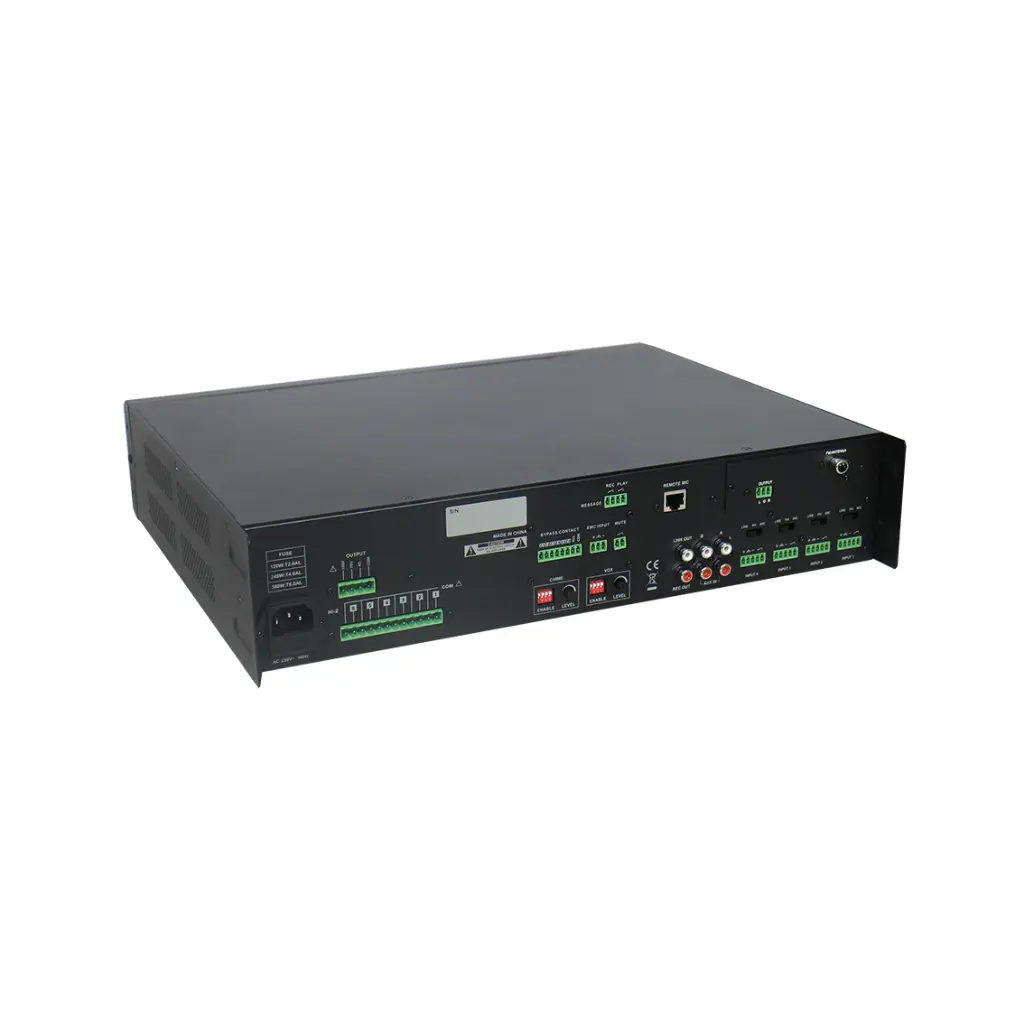

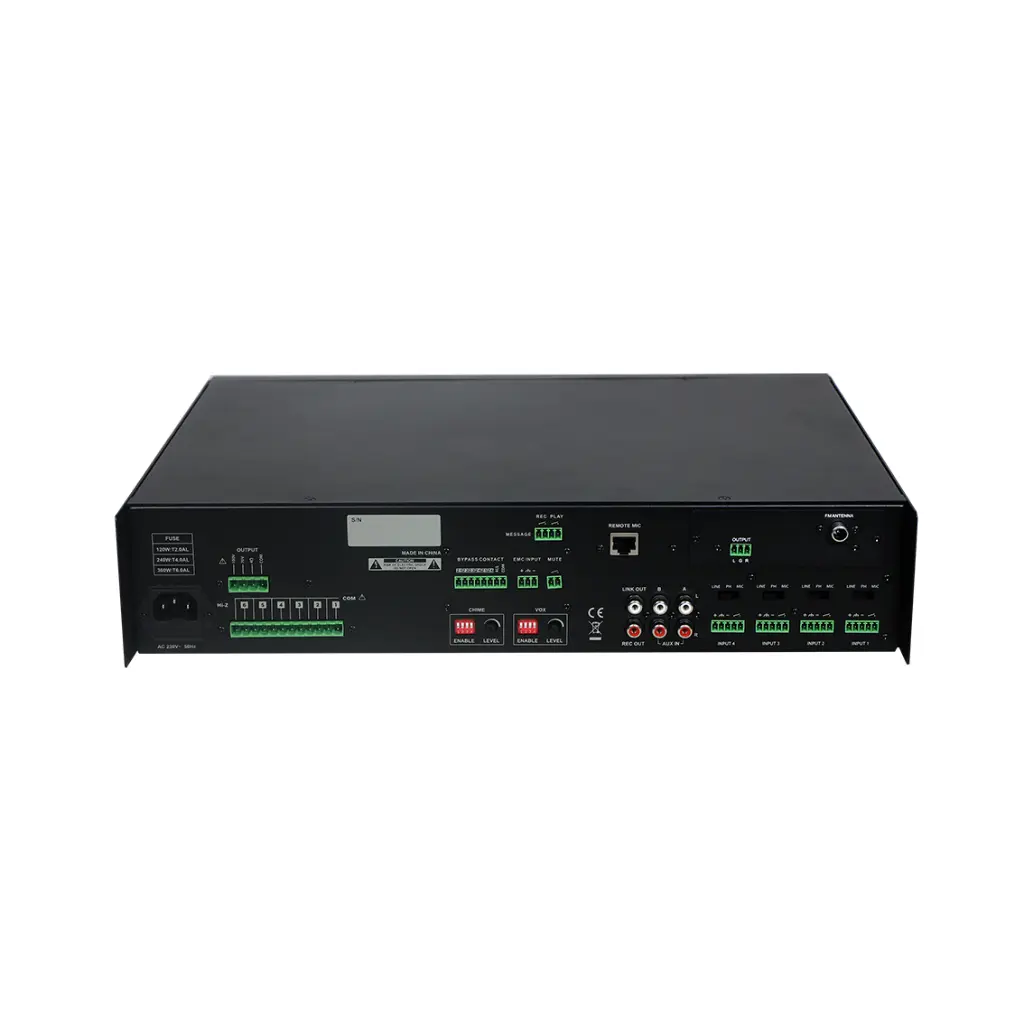

- Rear : Talkover Switch ( VOX ) & Phantom Power Switch for Channel 1-4. Chime enable with volume control.
Bypass contact input & system mute.
Connectors
- Input : Channel 1 – 4 : Electronically Balanced with chime switch.
- Aux : Dual RCA.
- Remote Mic : Rj45.
- Emergency Alarm input : Euro bolck.
- Output : Speaker Output : Euro Bock . Attenuated and Switched 6 CH, Direct Output 4Ω, 70V, 100V.
- REC Out & Link out : RCA.
- Contact : Ext. Chime : Euro block.
- MUTE : Euro block.
Media player module : MPlayer A / MPlayer B / MPlayer C.
Indicators : SIG, -10dB, CLIP & Protect. Zone selector.
Protection : Output Current Limiting, Thermal Protection & DC Offset Protection.
Cooling : Convection Cooling.
Option : Rack Mount Kit.
| MODEL | | Mpro 130 | Mpro 240 | Mpro360 | Mpro480 |
| Rated Power (RMS) | | 130W | 240W | 360W | 480W |
| Input sensitivity / Impedance | Channel 1-4 | -36dB / -10dB Selectable / 20 kΩ Balanced |
| Aux | 0dB / 20 kΩ Balanced |
| Remote Mic | 0dB / 20 kΩ Balanced |
| Output level / Impedance | Speaker Hi-z | 100V(83Ω),70V(42Ω) | 100V(42Ω),70V(21Ω) | 100V(28Ω),70V(14Ω) | 100V(21Ω),70V(10Ω) |
| Output Low-z | 22V (4Ω) | 31V (4Ω) | 38V (4Ω) | 43V (4Ω) |
| Rec Out | 0dB / 600Ω Unbalanced |
| Link Out | 0dB / 600Ω Unbalanced |
| Frequency Respose (-3dB) | | 65Hz – 18kHz |
| T.H.D (1kHz, Rated Power) | | <1% |
| Signal to Noise Ratio | | >80dB |
| Tone Control | ± 10dB | 100Hz , 10KHz |
| Power Source | | AC 115 / 230 V, 50/60Hz |
| Weight (Net) | | 9 kg | 10kg | 11kg | 12kg |
| Dimensions (W x H x D) | | 420 x88 x 320mm |
