The Loxone Tree Cable contains wire pairs for wiring the DC power supply and the data lines of Tree devices. The cable also contains a wire pair with a 1.5mm² cross-section for supplying devices with higher power requirements.
Features:
- Can be used universally for all Tree products

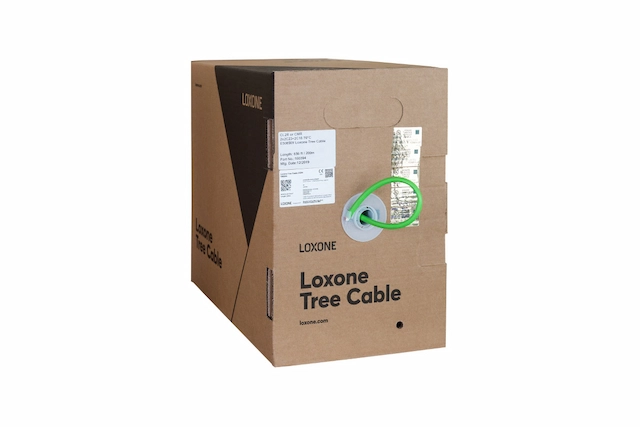

- Cardboard box with winding to prevent twisting
- Easy stripping and connection thanks to 2x1.5mm² power cable and 2x2x0.8mm cables
- Robust construction for reliable connections without strand breakage
- Precise color coding
- Exact meter marking
Technical details:
Packaging presentation:
200m / 656ft
Product dimensions:
7.5mm / 0.30” (D)
Loxone Tree: green & green / white:
2x 0.8mm Ø (0.5mm² / AWG20) - solid copper conductor - twisted pair
Power supply for devices with low power consumption: orange & orange / white:
2x 0.8mm Ø (0.5mm² / AWG20) - solid copper conductor - twisted pair
Power supply for devices with high power consumption: orange & orange / white:
2x 1.5mm² / AWG16 - fine-stranded copper conductor - construction of conductor: 28x0,245mm Ø
Certifications: CPR Class Eca
